SD5-B-R10-900

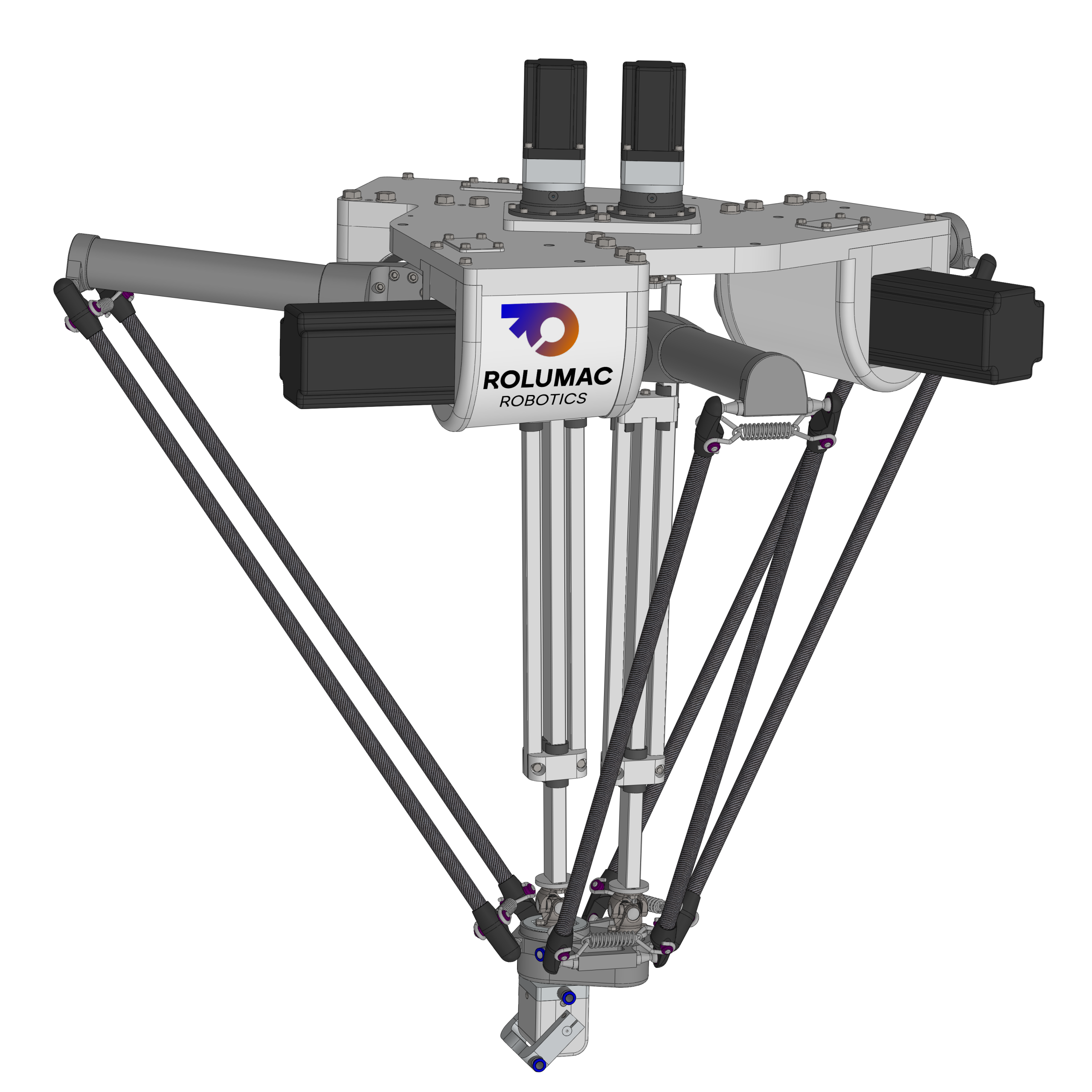

5 Axis Standard Delta Robot moving in 3D space

Payload 2kg

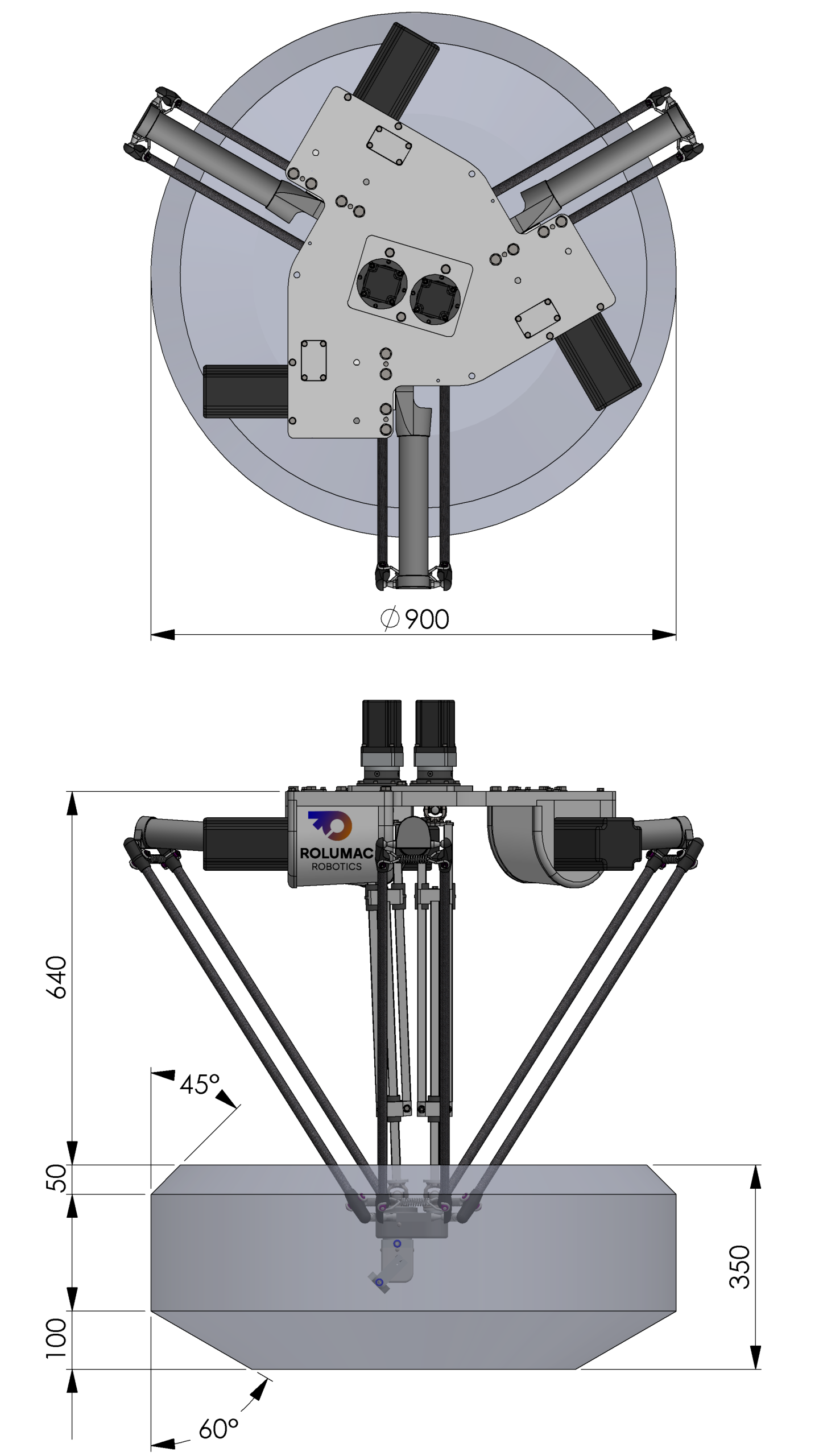

Working Range 900×350

Specifications

  • Nominal torque arm: 126Nm
  • Cycle time: up to 150/min
  • Position repeatability: 0.1mm
  • Noise level: <68dB(a)
  • Applications: in dry environments

Options

  • Rotation axis 10Nm
  • Ball spline rotation axis 15Nm
  • Wash down arms and rotation axis
  • High torque gearboxes
  • Open interface gripper control
  • Half or no motor covers
  • White Label

Accessories

  • Calibration tool primary arm
  • Calibration tool 5th axis
  • Tool line routing
  • Mounting brackets
